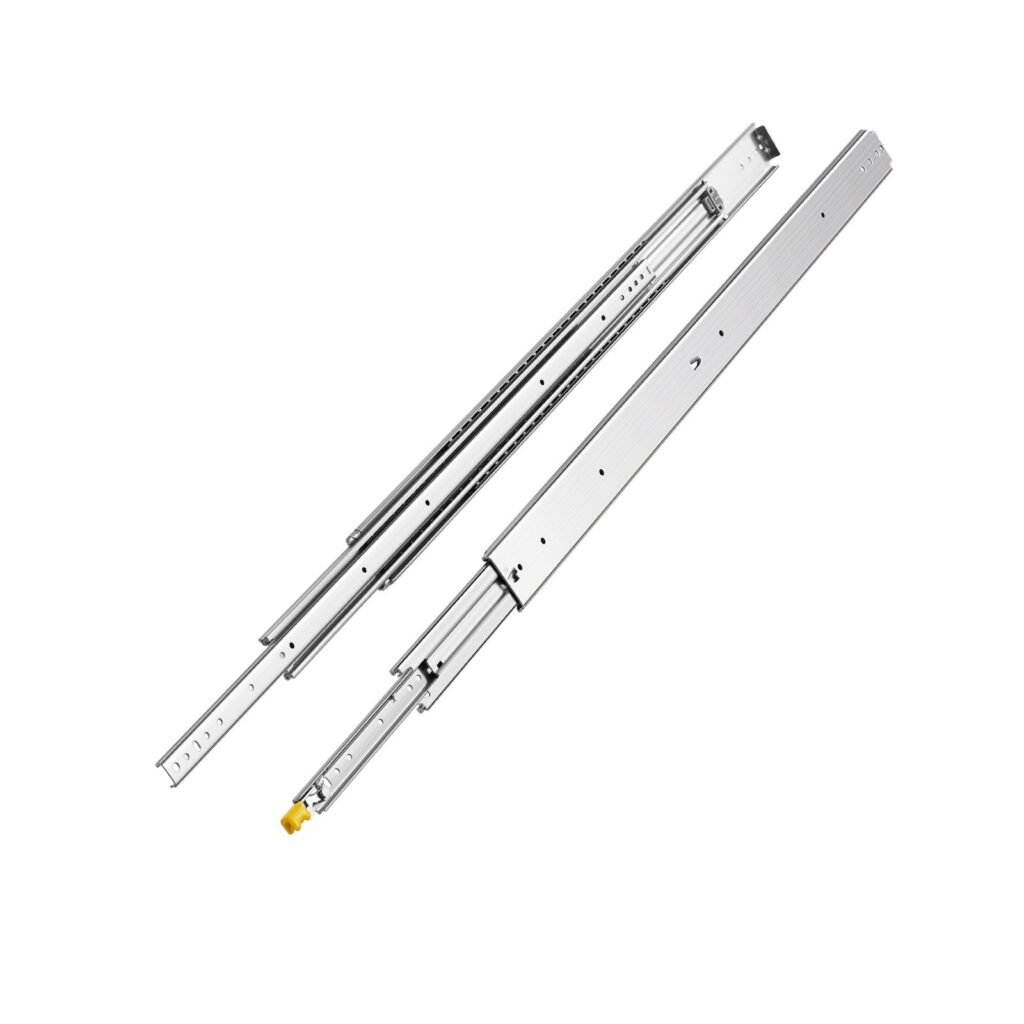

These heavy-duty ball-bearing drawer slides offer exceptional durability, smooth operation, and full extension, allowing complete access to your drawer contents. Available in lengths from 16 to 60 inches, they are the best choice for large residential cabinetry, tool chests, and industrial applications requiring reliable load-bearing performance and effortless, quiet opening and closing.
Heavy Duty Drawer Slides 500lb Capacity: Ultimate Guide
When you are building heavy-duty cabinetry, outfitting a utility vehicle, or setting up shop storage, standard hardware simply will not cut it. Cheap residential slides buckle under pressure, jam when loaded unevenly, and lack the structural integrity required for rigorous daily use. If you need hardware that can support massive weights without sacrificing smooth operation, finding the best 1 pair 16-60 in drawer slides ball bearing full extension is critical to the longevity of your build.
Priced at $275.39, this commercial-grade hardware is engineered from 0.77-inch (19.5 mm) thick high-hardness steel to handle up to 500 pounds of distributed weight. Whether you are constructing pull-out pantry shelving, outfitting an overland truck bed, or replacing worn-out slides in industrial machinery, understanding what makes these slides perform under pressure will help you make an informed investment.
In this guide, we break down the engineering specs, ideal applications, sizing guidelines, and installation considerations for these heavy-duty slides so you can build storage systems that last.
Table of Contents
Why Choose 500lb Capacity Drawer Slides
Engineering for Extreme Loads
Standard drawer slides typically max out at 75 to 100 pounds, which is fine for socks and silverware. However, heavy tools, canned goods, batteries, and equipment demand significantly more structural support. The best 1 pair 16-60 in drawer slides ball bearing full extension feature an impressive 500-pound load capacity. This is achieved through the use of 0.77-inch thick high-hardness steel, which resists flexing, twisting, and bowing even when the drawer is fully extended and loaded to its maximum limit.
Durability and Corrosion Resistance
In environments like garages, workshops, commercial kitchens, and service vehicles, moisture and friction are constant threats to hardware longevity. These heavy-duty slides feature a durable galvanized finish. This protective coating shields the steel substrate from rust, oxidation, and everyday wear and tear. Unlike standard zinc-plated slides that pit and corrode over time, the galvanized surface ensures smooth sliding action for years, even in humid or unconditioned spaces.
Precision Movement Under Heavy Weight
Loading a drawer with hundreds of pounds usually makes it nearly impossible to open without two hands and a lot of muscle. These slides utilize double-row solid steel ball bearings to distribute weight evenly across the raceways. This engineering reduces friction to a minimum, allowing you to pull out a fully loaded 500-pound drawer with smooth, consistent force and zero binding.
Key Features: Locking Mechanism and Full Extension
Secure Lock-In and Lock-Out Design
If you are installing drawers in a mobile environment such as an RV, trailer, or service truck, standard slides will roll open every time you take a turn or hit a bump. To solve this, the best 1 pair 16-60 in drawer slides ball bearing full extension incorporate a reliable double-lock design. A simple press of the handle engages or disengages the lock, securing the drawer firmly in the closed position as well as fully extended. This prevents accidental sliding and keeps your cargo secure during transit.
Unobstructed Access with Full Extension
Partial extension slides leave the back 20 to 30 percent of your drawer hidden inside the cabinet, forcing you to reach blindly for items stored in the rear. These slides offer true full extension, meaning the drawer pulls completely out of the cabinet housing. You get 100% visibility and unhindered access to the very back of the drawer box, making organization and retrieval effortless.
Quiet and Controlled Operation
Heavy metal hardware often generates loud rattling and clanking noises during operation. The precision engineering of these ball-bearing slides, combined with the secure latching mechanism, dampens vibration and minimizes noise. The locking levers operate smoothly without requiring excessive force, ensuring that heavy-duty performance does not come at the cost of ease of use.
Ideal Applications for Heavy-Duty Slides
Workshop and Garage Storage
Tool storage demands extreme durability. Heavy steel sockets, pneumatic wrenches, and specialized diagnostic equipment quickly exceed the weight limits of standard cabinetry. Integrating these industrial-grade slides into custom workbench drawers, rolling tool chests, and wall-mounted storage racks allows you to store heavy gear safely while keeping your workspace organized.
RVs, Overland Trucks, and Utility Vehicles
Mobile living and working environments put immense stress on hardware due to constant vibration, uneven terrain, and sudden stops. The locking feature makes the best 1 pair 16-60 in drawer slides ball bearing full extension an essential component for custom slide-out kitchen units in campervans, generator trays in pickup trucks, and tool drawers in service utility bodies.
Commercial and Industrial Environments
From automated vending machines and heavy-duty retail displays to factory floor storage cabinets and medical carts, commercial settings require hardware built for thousands of open-and-close cycles. The high-hardness steel construction and robust galvanized finish withstand heavy daily use without failing, reducing maintenance downtime and replacement costs.
How to Choose the Right Slide Length
Measuring Your Cabinet Depth
Choosing the correct slide length is crucial for proper installation and operation. Always measure the interior depth of your cabinet box from the inside front face to the inside back wall. Do not include the thickness of the front face frame in this measurement. Select a slide length that matches or is slightly shorter than your cabinet depth to ensure the unit fits flush when closed.
Accounting for Drawer Box Dimensions
The best 1 pair 16-60 in drawer slides ball bearing full extension require specific side clearance to function correctly. These slides typically require a side clearance of 0.79 inches (20 mm) on each side of the drawer box. Failing to leave the proper gap will cause the slides to bind, rub, or fail to lock properly. Always dry-fit your components before screwing everything into place.
Understanding the 16 to 60-Inch Range
Because these slides are available in lengths ranging from 16 inches all the way up to 60 inches, you can scale your hardware to match everything from shallow under-counter drawers to massive truck bed extensions. Match longer slides (40 to 60 inches) with deep, heavy-duty applications where extended reach is necessary, while shorter lengths (16 to 30 inches) suit standard cabinetry and pull-out shelves.
Pros and Cons
Pros
- Exceptional 500 lb weight capacity supports heavy tools, equipment, and supplies
- Double-lock mechanism secures drawers in closed and fully extended positions
- Galvanized finish provides reliable rust and corrosion resistance
- Full-extension design provides 100% visibility and access to drawer contents
Cons
- Requires precise 0.79-inch side clearance, demanding accurate woodworking or metal fabrication
- Substantial steel construction adds significant weight to your overall cabinet build
- Higher price point of $275.39 reflects commercial-grade build quality
- Installation requires two people and careful alignment for optimal performance
Frequently Asked Questions
What is the exact weight capacity of these drawer slides?
These heavy-duty slides are rated for up to 500 pounds of distributed weight per pair. To maintain this rating, ensure your drawer box is constructed from sturdy materials like plywood or metal, and use all designated mounting holes during installation.
Do these slides come with the mounting hardware included?
Mounting hardware is generally not included because the appropriate fasteners depend entirely on whether you are attaching the slides to wood, steel, or aluminum. You will need to source heavy-duty screws or bolts appropriate for your specific application.
How does the locking mechanism work?
The slides feature a built-in handle on the front of each slide track. Pushing this handle down releases the lock, allowing you to open or close the drawer. When the drawer reaches the fully closed or fully extended position, the lock automatically engages to hold the slide securely in place.
Can I install these slides vertically instead of horizontally?
No. These ball-bearing slides are engineered strictly for horizontal, side-mounted applications. Installing them vertically or flat on the bottom of a drawer will drastically reduce their weight capacity and cause premature mechanical failure.
What side clearance is required for installation?
You must allow for a 0.79-inch (20 mm) clearance on each side between the drawer box and the interior cabinet wall. Measuring and maintaining this exact gap ensures the ball bearings glide smoothly and the locking mechanism functions without interference.
When your projects demand uncompromising strength, reliability, and security, settling for residential-grade hardware will only lead to sagging drawers and failed mechanisms. Investing in the best 1 pair 16-60 in drawer slides ball bearing full extension ensures your custom builds can handle heavy loads, rough travel, and daily industrial use without missing a beat. Order your set today and build storage solutions designed to last a lifetime.
