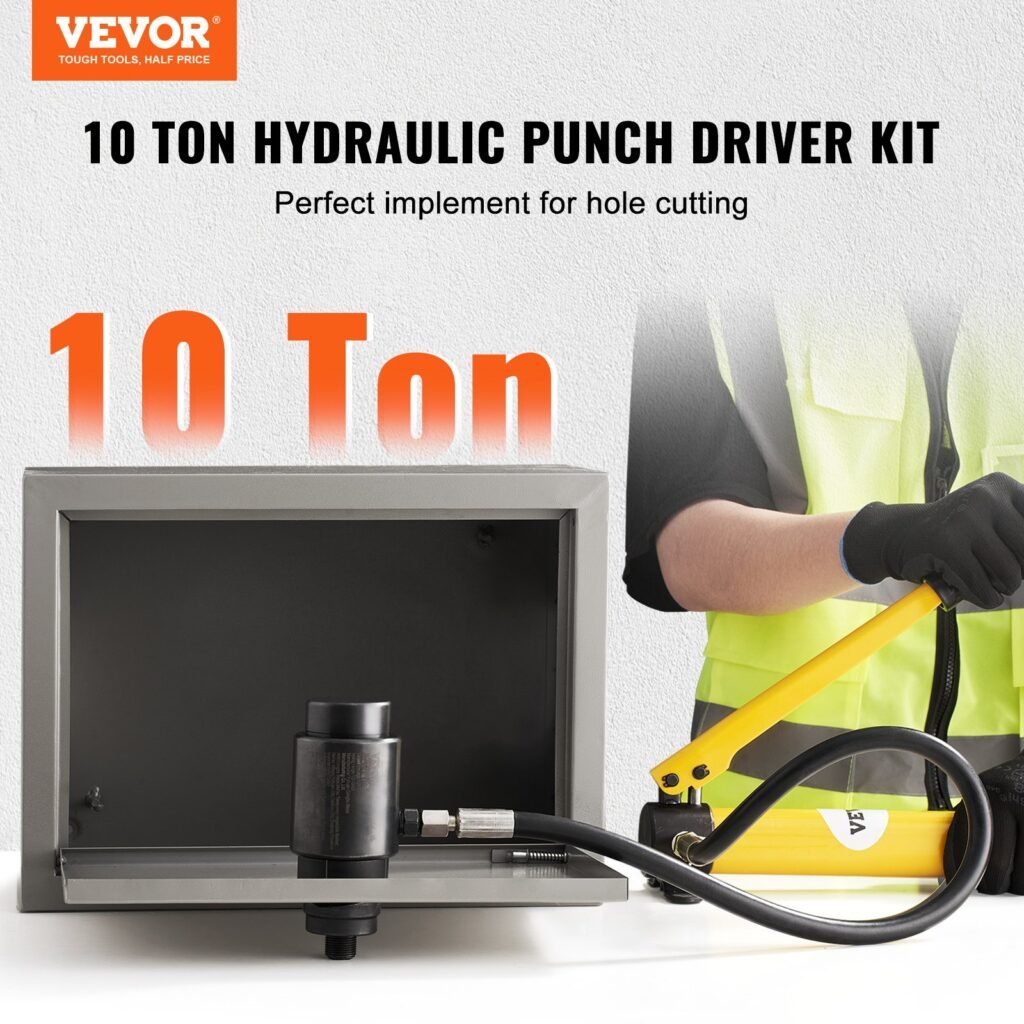

The best 10-ton hydraulic knockout punch kit features a durable 6-piece set with a 1/2" to 2" conduit capacity, designed to cleanly cut stainless steel, aluminum, brass, fiberglass, and plastic. This heavy-duty metal sheet driver tool delivers professional, burr-free holes with minimal effort, making it ideal for electricians and industrial fabricators.
When you are running electrical conduit through metal panels, enclosures, or junction boxes, cutting clean, burr-free holes is essential for a professional finish. Traditional hole saws and step bits often chatter, slip, and generate excessive heat, resulting in ragged edges that ruin expensive electrical cabinets. If you need a reliable method to punch exact conduit sizes without exhausting your arms on manual wrenches, upgrading to the best 10 ton hydraulic knockout punch kit, 1/2″ to 2″ conduit hole cutter set, ko tool kits with puncher 6 piece, metal sheet driver tools, for aluminum, brass, stainless steel, fiberglass and plastic changes how you approach electrical installations.
Priced at $226.88, this industrial-grade kit eliminates the struggle of manual metal fabrication by harnessing hydraulic mechanical advantage. Whether you are an electrician mounting control panels or an advanced DIYer building a custom enclosure, having the right punch and die combination ensures your conduit fittings align precisely every single time without requiring hours of filing and deburring.
Table of Contents
Overview of the 10 Ton Hydraulic Knockout Punch Kit
What Comes in the 6-Piece KO Tool Kit
When you open the heavy-duty storage case, you receive a complete system designed for immediate job-site deployment. The core of the system is the hydraulic pump unit, which generates the massive tonnage required to drive the punches through thick sheet metal cleanly. Alongside the pump, the kit includes six distinct punch and die sets matched to standard North American conduit sizes: 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch, and 2 inch. This range covers the vast majority of commercial and residential wiring requirements.
Additional Hardware and Components
Beyond the primary punches and dies, the package supplies essential hardware to keep your workflow uninterrupted. You get a step drill bit to create the initial pilot hole required for the draw stud, two draw studs to accommodate different die sizes, a piston shaft, a sturdy spacer, and replacement sealing rings. Everything packs securely into a molded metal or heavy plastic carrying case, preventing loose parts from rolling around in your service truck.
Key Specifications and Materials Handled
Capacity and Thickness Limits
Understanding the exact material limits of your tooling prevents damaged dies and stalled projects. This hydraulic knockout set is rated to punch through soft carbon steel plate up to 0.1 inches thick, which corresponds to 10-gauge metal. When working with harder metals like stainless steel, the maximum recommended thickness is 0.05 inches, or 18-gauge. Exceeding these thickness parameters can crack the cutting edges of the punches or bend the draw studs.
Versatility Across Substrates
While electrical work primarily involves steel panels, modern installations require working with diverse materials. This kit handles much more than just carbon and stainless steel. You can cleanly cut holes in aluminum, brass, fiberglass, and various rigid plastics without cracking or splintering the surrounding material. This makes the best 10 ton hydraulic knockout punch kit, 1/2″ to 2″ conduit hole cutter set, ko tool kits with puncher 6 piece, metal sheet driver tools, for aluminum, brass, stainless steel, fiberglass and plastic an adaptable asset for marine fabricators, HVAC technicians, and industrial maintenance crews.
How the 10 Ton Hydraulic Pump Saves Time
Mechanical Advantage vs. Manual Wrenches
Traditional manual knockout sets require you to crank a heavy wrench through heavy threads while holding the punch steady. This process is physically demanding, especially when working overhead or inside cramped electrical enclosures. The integrated hydraulic mechanism pump on this unit produces 10 tons of concentrated pressure, doing the heavy lifting for you. Pumping the handle requires minimal physical exertion compared to the muscle power needed for manual screw punches.
Speed and Precision on the Job
High punching accuracy and fast cycle times translate directly to labor savings on commercial job sites. Once you align the punch with your pilot hole, a few strokes of the hydraulic pump cleanly shear the metal slug, dropping it free into the die. There is no wandering drill bit, no flying hot metal shavings, and no distorted panel face. The resulting hole is smooth, perfectly round, and ready for immediate connector installation.
Step-by-Step Guide to Using a Knockout Punch
1. Layout and Pilot Drilling
Measure your enclosure and mark the exact center point where your conduit needs to enter. Use a center punch to create a dimple so your drill bit does not skate across the surface. Using the included step drill bit, drill a pilot hole large enough to pass your selected draw stud through. For smaller conduit sizes like 1/2 inch, you will use the smaller draw stud, while larger sizes require stepping up.
2. Assembly of the Punch and Die
Insert the draw stud through the hydraulic ram and thread it securely into the punch. Place the die on the opposite side of the metal sheet, facing the cutting edge toward the material. Pass the draw stud through your pilot hole and thread it into the die. Ensure the metal panel is sandwiched evenly between the punch and the die before applying any hydraulic pressure.
3. Operating the Hydraulic Pump
Close the release valve on the hydraulic pump by twisting it clockwise. Pump the handle steadily. You will feel resistance increase as the punch engages the metal, followed by a sharp drop in resistance as the slug shears completely through. Open the release valve by turning it counter-clockwise to retract the ram, remove the unit, and pop the metal slug out of the die.
Pros and Cons
Pros
- Generates a powerful 10 tons of hydraulic pressure for effortless metal shearing
- Includes 6 common conduit sizes ranging from 1/2 inch up to 2 inches
- Capable of punching aluminum, brass, fiberglass, plastic, stainless steel, and mild steel
- Reduces operator fatigue significantly compared to standard manual wrench kits
- Comes complete with a step drill bit, draw studs, and a durable carrying case
Cons
- Limited to 10-gauge soft steel and 18-gauge stainless steel maximum thickness
- Hydraulic fluid seals require occasional inspection for leaks over years of heavy use
- Heavier than manual wrench sets due to the integrated pump and ram assembly
- Carrying case takes up dedicated storage space in a service vehicle
Frequently Asked Questions
What is the maximum metal thickness this kit can punch?
The kit is rated for a maximum thickness of 0.1 inches (10 gauge) for soft carbon steel and 0.05 inches (18 gauge) for stainless steel. Attempting to punch metals thicker than these thresholds can damage the punches or overload the hydraulic ram.
Can I use this tool to punch holes in plastic or fiberglass?
Yes. In addition to metals like steel, brass, and aluminum, the best 10 ton hydraulic knockout punch kit, 1/2″ to 2″ conduit hole cutter set, ko tool kits with puncher 6 piece, metal sheet driver tools, for aluminum, brass, stainless steel, fiberglass and plastic cleanly cuts through fiberglass enclosures and rigid plastic junction boxes without cracking the surrounding material.
What sizes of conduit punches are included in the 6-piece set?
The kit includes six standard trade sizes: 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch, and 2 inch. These sizes cover standard electrical conduit fittings used in commercial and residential wiring projects.
Do I need to drill a pilot hole before using the hydraulic punch?
Yes. You must drill a pilot hole using the included step drill bit to pass the threaded draw stud through the metal panel. The punch and die assemble on either side of this pilot hole before hydraulic pressure is applied.
How does the hydraulic pump reduce physical strain?
Instead of manually cranking a high-friction wrench through thick steel, the hydraulic pump utilizes fluid dynamics to multiply your arm strength. Pumping the handle generates 10 tons of force, shearing the metal cleanly with minimal physical effort.
When your daily work involves running electrical lines through metal enclosures, struggling with worn-out hole saws costs you time and money. Investing in the best 10 ton hydraulic knockout punch kit, 1/2″ to 2″ conduit hole cutter set, ko tool kits with puncher 6 piece, metal sheet driver tools, for aluminum, brass, stainless steel, fiberglass and plastic gives you professional-grade fabrication capability in a portable package. Order your set today at $226.88 and experience clean, effortless conduit holes on your next electrical installation.
